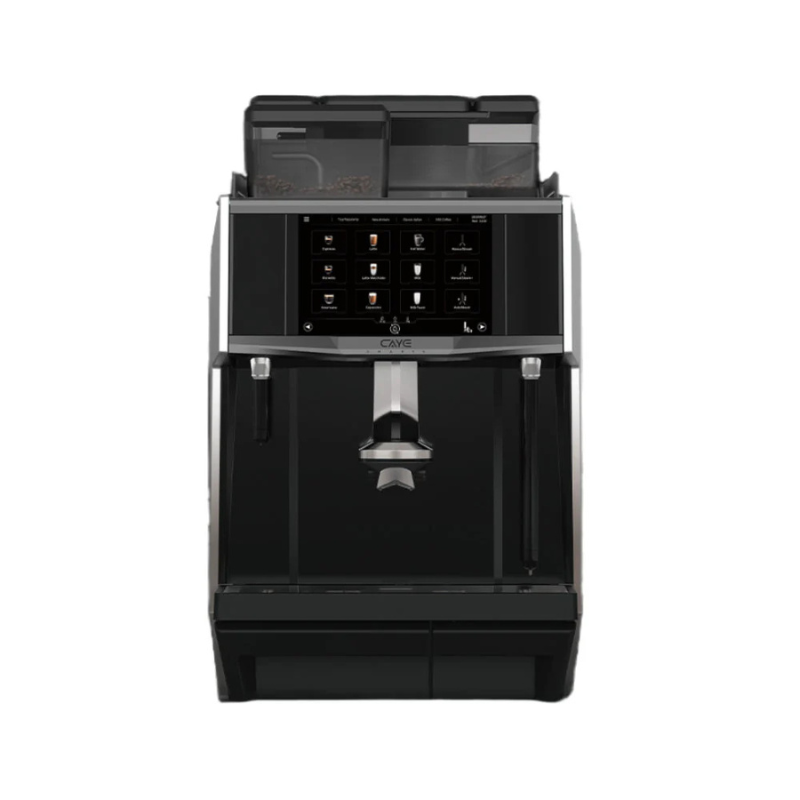

Caye SMART X - Automatic Coffee Machine - 1MSF
- Display: 10.1" true-color touch screen
- Networking: Wired Connection (RJ45)
- Digital Service (IoT): Remote monitoring, beverage recipe update & sync, firmware update, machine self-diagnosis, and more
- Output Capacity: 156 espresso per hour
- Autocleaning: Both coffee and milk systems
- Hot Water From Coffee Nozzle
Smart X Series Commercial Fully Automatic Coffee Machine
The Smart X Series emulates the artistry of elite baristas with its Bionic Barista system. It meticulously orchestrates each phase of coffee preparation — grinding, weighing, tamping, and extraction — to deliver an exceptional and individualized coffee experience.
Precision Grinding and Dosing
The Constant Particle Size (CPS) ceramic burr grinder, powered by a silent BLDC motor, ensures thermal consistency and maintains particle size variations below 40μm. The AccuPowder Weigh system maintains a ±0.2g margin of error in dose control for exacting brew ratios.
Uniform Extraction and Stable Brewing
The Vertical Vibrating Distribution (VVD) system levels the coffee bed using vertical vibration, preventing channeling and ensuring stable extractions. Reverse gravity extraction and vertical infusion maximize efficiency and quality, enhanced by the AccuLiquid Weigh system for accurate liquid measurement.
SuperMix Frothing Technology
SuperMix technology blends air and milk through a spiral vortex and steam infusion to produce dense, high-quality milk foam, perfect for showcasing latte artistry.
DualShift Brewing & CLS Technology
DualShift brewing mode leverages dual chambers for efficiency. The innovative Closed-Loop System (CLS) adjusts grind size in real time based on dose and extraction duration, ensuring consistency across every cup.
Generational Coffee Machine Comparison
1st Generation
- Estimates powder weight by time
- Low accuracy and consistency
- Open-loop quality control
2nd Generation
- Estimates powder weight by thickness
- Medium accuracy and consistency
- Semi-closed loop quality control
3rd Generation
- Directly measures powder weight
- High accuracy (±0.2g), 0.03% precision
- Complete closed-loop quality control
CLS Monitoring & Calibration
CLS continuously monitors and adjusts grind settings after each shot. It supports one-button calibration and consistent quality across locations without needing highly trained baristas.
Advanced Extraction Systems
The CPS ceramic burr grinder supports long sessions without heat build-up. VVD technology ensures even tamping. Reverse gravity infusion ensures balanced extraction.
Flexible Milk Systems
- CayeFoam+: Silky foam for latte art
- AutoMilk: One-touch operation
- CayeSteam: Manual, auto-temp, and full-auto frothing modes
SuperMix Milk Quality
SuperMix frothing with a spiral design meets SCA Level 1 standards for excellent milk foam.
Durable Modular Design
All-metal parts and a modular frame allow 3-minute servicing with minimal training, reducing downtime.
IoT Connectivity and Control
- API with component metadata for ERP and IoT platforms
- Real-time device status and production monitoring
- Remote firmware updates, UI syncing, and beverage recipe downloads
Specifications & Details
- Model: SMART X 1MSF
- Category: Full Function
- Dimensions: 430W × 700H × 600D mm
- Voltage/Power: 220-240V, 50/60Hz, 5.6kW
- Weight: 56kg
Output Capacity
- 156 espressos/hour
- 151 cappuccinos/hour
Key Specifications
- 2 x 1.2 kg Bean Hoppers, 2 Grinders
- 64mm CPS Ceramic Burrs
- 24g Brew Chamber
- 1.6L Hot Water Boiler & Steam Boiler
- 90–190mm Coffee Outlet Height
- 4L Ground Drawer with 540g reminder
- Coffee Scale Module: Standard
- Liquid Scale Module: Optional
- CLS Quality Control: Standard
User Interface
- 10.1" true-color touch screen
- Wired RJ45 Networking
- IoT Services: Remote monitoring, recipe sync, firmware updates, self-diagnosis
Maintenance Features
- Auto-cleaning (coffee and milk systems)
- Hot water dispensing from coffee nozzle
- 1-type milk inlet
- Auto frothing steam wand
- Frothed milk into milk pitcher
- Milk dispense into coffee cup
اللون | أسود |
---|---|
ماركة | Caye |
الأصل | الصين |
نوع المنتج | ماكينة قهوة |
الجهد الكهربي | 220 - 240 فولت |
الطاقة | 5.6Kw |
نوع ماكينة القهوة | ماكينة إسبرسو |
وزن صندوق الشحن | 56.00 |
عرض صندوق الشحن | 60 |
طول صندوق الشحن | 43 |
ارتفاع صندوق الشحن | 70 |
